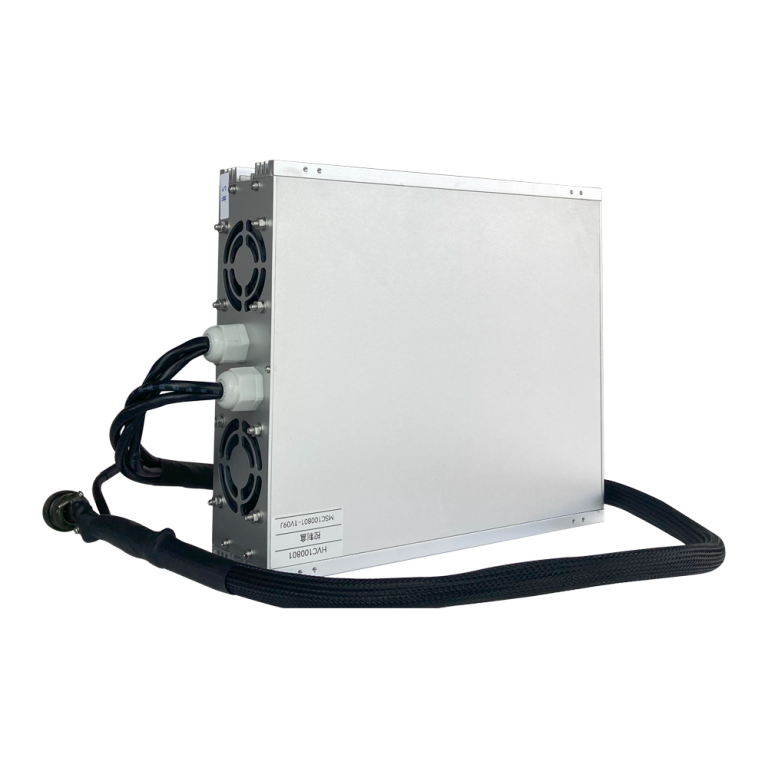

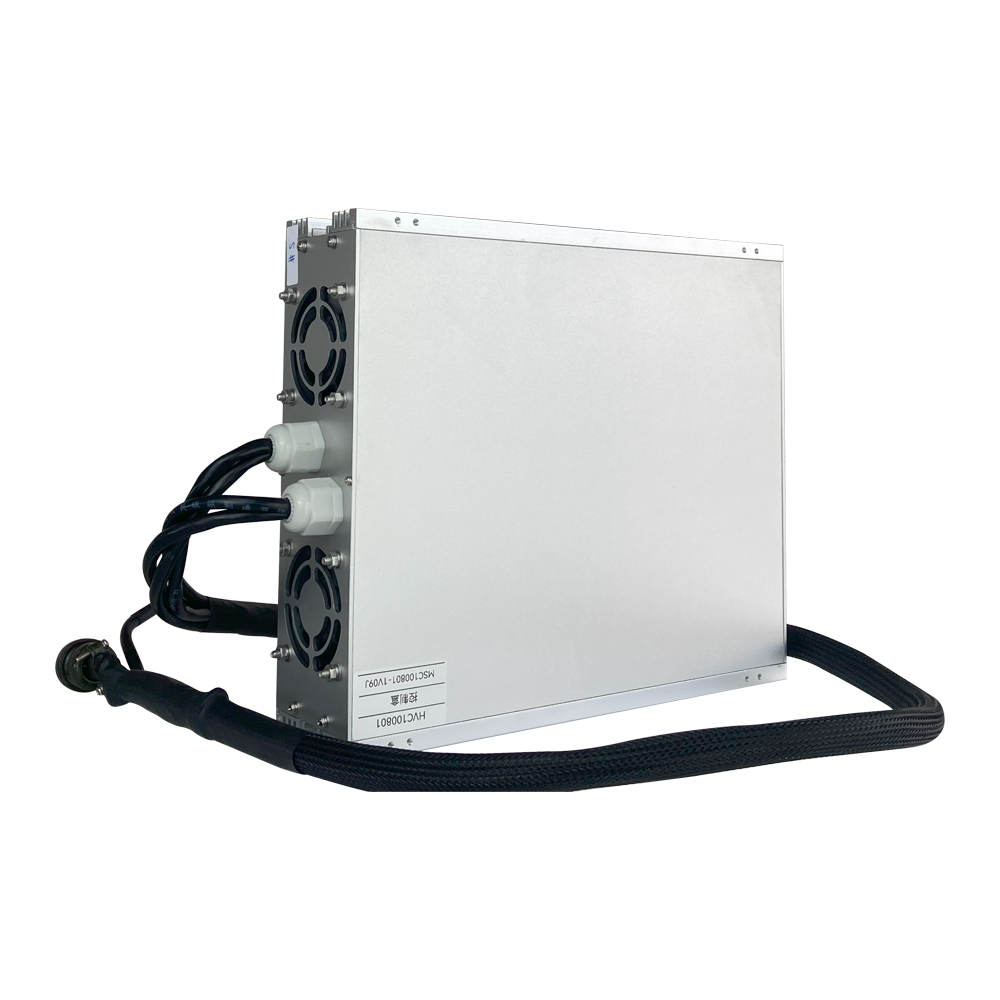

The HVC100801 is a compact, safe, low-leakage, and electrically stable integrated X-ray source. It can operate continuously at 350W within the allowable temperature range. The X-ray source comprises a high-voltage power supply, filament power supply, X-ray tube, high-voltage oil tank, and radiator. This high-frequency, self-cooling, and self-protecting X-ray generator delivers up to 100kV and 350W. It mainly consists of a control box and high-voltage oil tank, with RS232 interface for system control, monitoring, and firmware upgrades.
Food Testing, Industrial Non-Destructive, Security Application and other fields
| Item | Specification |
| Input voltage | 230VACยฑ10%, 50/60Hz, 3Amps |
| Output power of X ray tube | Max continuous output power 350W๏ผ100kV/3.5mA or 43kV/8.0mA๏ผ |
| Output voltage | Rated output voltage๏ผContinuously adjustable voltage range 30kV—100kV |
| Output voltage ripple๏ผยฑ0.5%๏ผpeak to peak๏ผ | |
| Output voltage accuracy๏ผยฑ2% of voltage setting value | |
| line regulation๏ผยฑ0.1% | |
| load regulation๏ผยฑ0.1% | |
| Tube current | Rated tube current๏ผContinuously adjustable current range 0.5mA-8.0mA |
| Tube current accuracy๏ผยฑ0.2mA of current setting value | |
| line regulation๏ผยฑ0.1% | |
| load regulation๏ผยฑ0.1% | |
| Rise time of output voltage | The kV rise time is <0.6 Sec at maximum power |
| The kV rise time is <0.1 Sec at low voltage ( < 40kV ) | |
| Filament power supply: | input voltage๏ผ24VDC |
| filament voltage๏ผ2.0 to 5.3Vac | |
| filament๏ผ3.0 to 3.8 Amps RMS | |
| preheating time๏ผ3sec | |
| Tube feature | Tube type๏ผfixed anodeใglass envelopeใtungsten target |
| focus๏ผ0.8mm | |
| inherent filtration๏ผ0.8mm Be๏ผ0.7mm AI | |
| radiation angle๏ผ80ยบ*16ยบfan beam | |
| target angle๏ผ25ยฐ | |
| Cooling | transformer oil๏ผexternal circulation๏ผexternal forced air cooling |
| Working temperatures | -10โ—40โ |
| Storing temperature | -20โ—60โ |
| System temperature protection | 60โยฑ3โ of oil temperature |
| Humidness | 98%๏ผNon-condensation |
| Weight | Oil tank๏ผ27.3kg |
| Control Unit๏ผ3.8kg | |
| Installation direction | Installation in any direction |
| Radiation angle | 16ยฐร80ยฐ |
| X-ray leakage | Less than 0.5mR/hr at 5cm from the surface of the HVC100801. |
JB1/AC~(AC Input Power Connector)
| Pin | Signal | Parameter |
| 1 | L | live wire |
| 2 | N | Neutral line |
| 3 | G | PE |
JB2/COM (DMR-9S interface definitions)
| Pin | Signal | Parameter |
| 1.4.6.7.8.9 | N/C | No connect |
| 2 | TXD | Data transmit |
| 3 | RXD | Data receive |
| 5 | GND | Signal gnd |
JB3/Interlock,(DMR-9P interface definitions)
| Pin | Signal | Parameter |
| 3/4/5/6/7/8/9 | N/C | No connect |
| 1 | Interlock Out | |
| 2 | Interlock In |
Short connect pin1 and pin2 make X ray source normal operation. Typical connection๏ผ
Led indicator:
| ID | Color | Meaning |
| XrayOn | Yellow | indicate X ray on |
| ARC | Red | Arcing in oil tank |
| OT | Red | Over temperature |
| EP_Err | Red | Tube voltage error |
| IP_Err | Red | Tube current error |
| Power | Green | Power on |

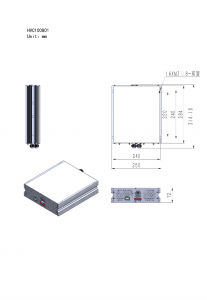

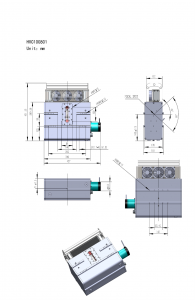

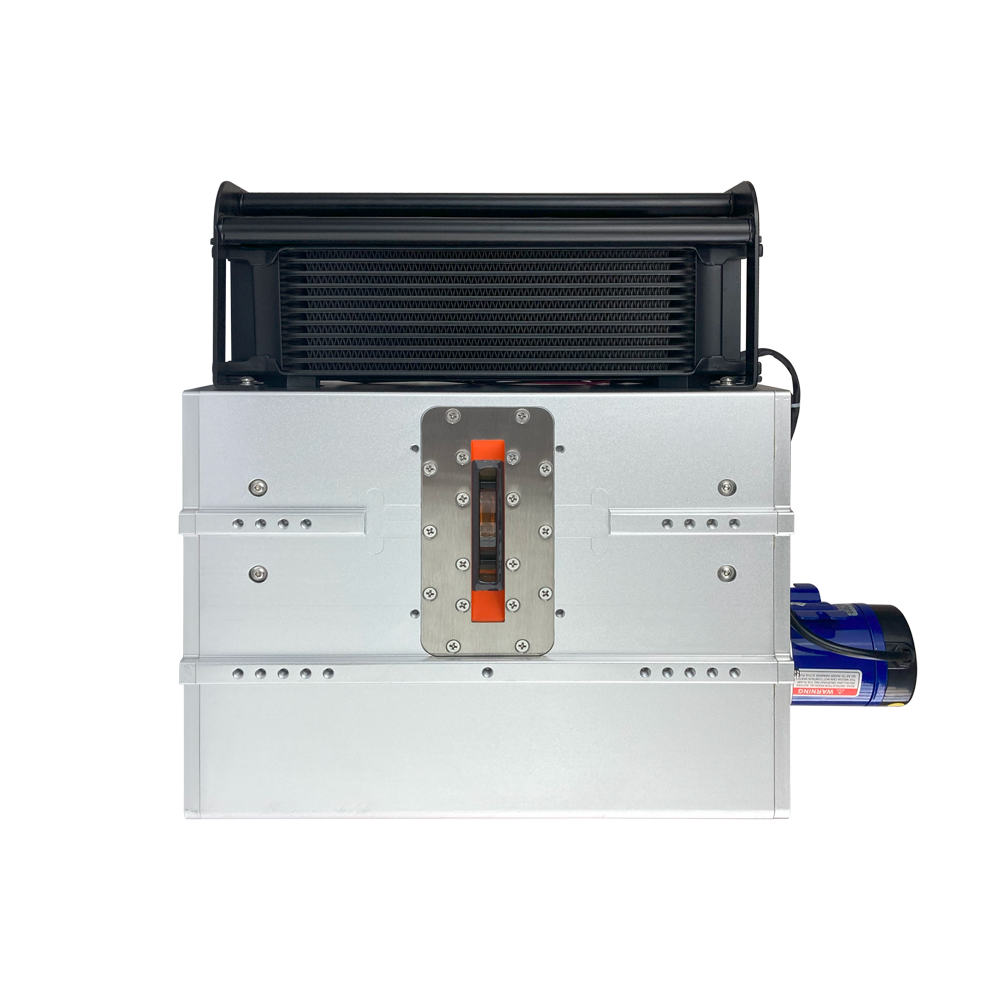

Tank size
