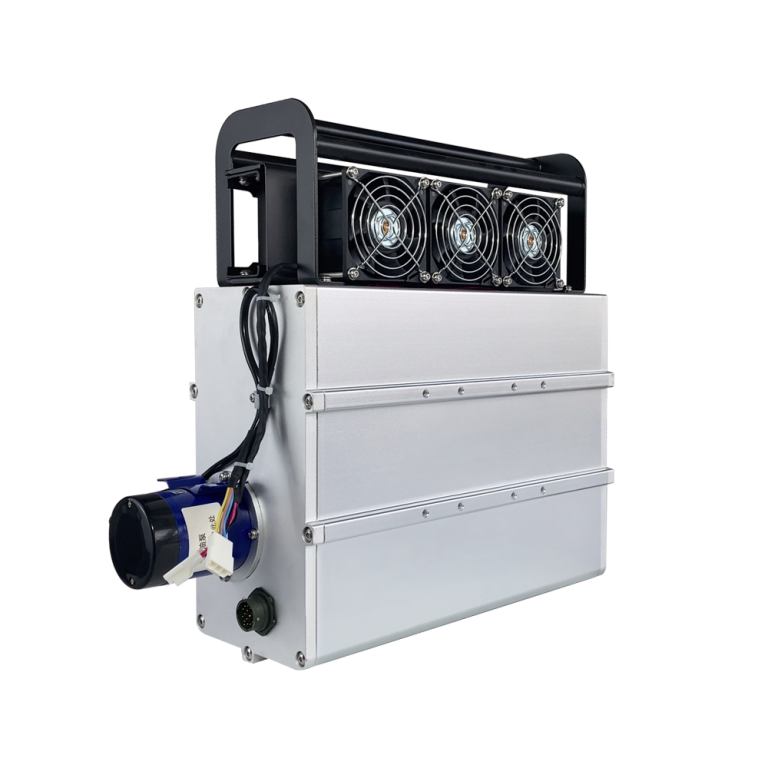

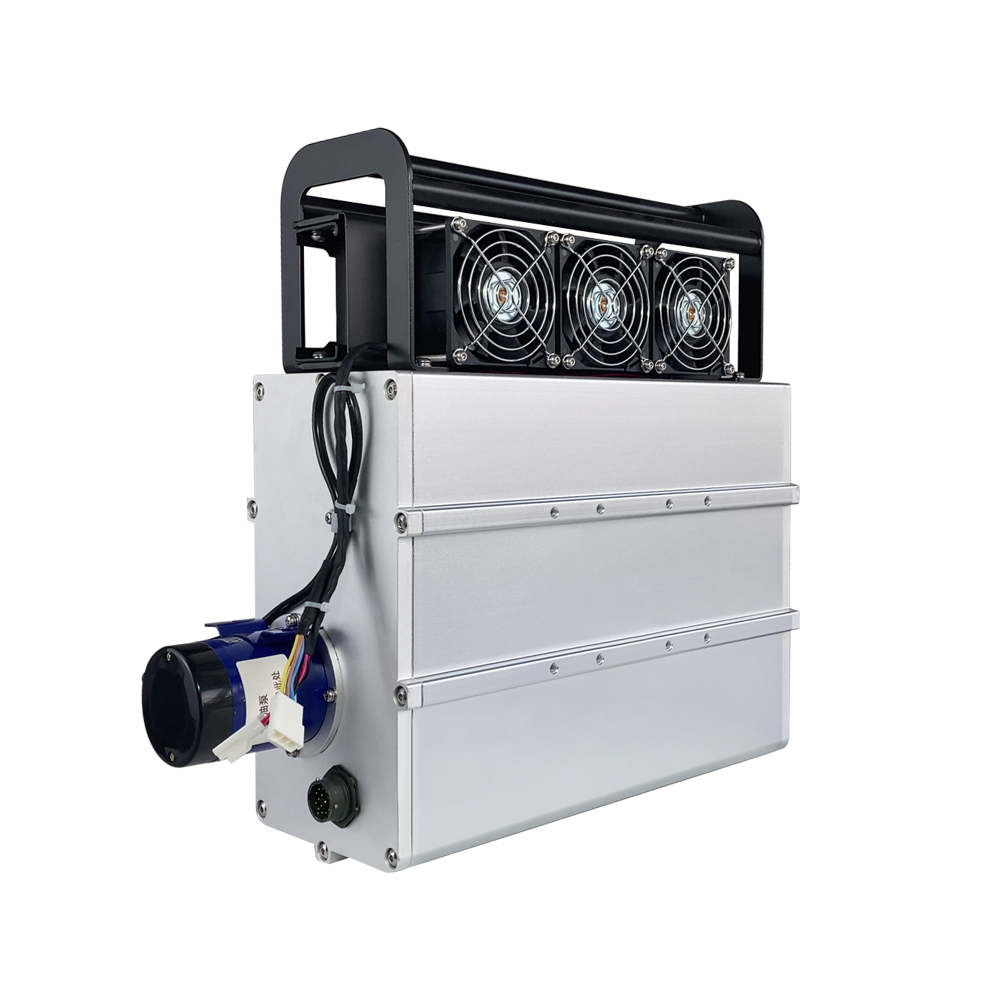

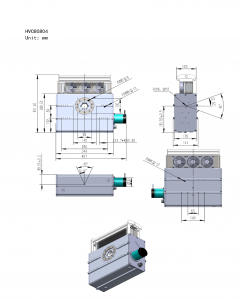

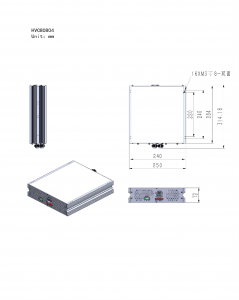

HVC80804 X-Ray Source

Key Features:

Integrated design with a compact structure and easy installation
Equipped with an external beryllium window tube, ideal for low-voltage applications
High system integration with a self-circulating cooling system
Versatile installation options
Standard digital interface for simple application

Product Details

The HVC80804 is a compact, safe, low-leakage, and electrically stable integrated X-ray source. It can operate continuously at 350W within the allowable temperature range. The system includes a high-voltage power supply, filament power supply, X-ray tube, high-voltage oil tank, and radiator. This high-frequency, self-cooling, and self-protecting X-ray generator delivers up to 80kV and 350W. It primarily consists of a control box and high-voltage oil tank, with RS232 interface for system control, monitoring, and firmware upgrades.

Application:

Food testing, Shoes and clothing detection, fluorescence analysis application and other fields, mostly used for X-ray machines.

Specification:

Item	Specification
Input voltage	230VAC±10%, 50/60Hz, 3Amps
Output power of X ray tube	Max continuous output power 350W（80kV/4.3mA or 43kV/8.0mA
Output voltage	Rated output voltage：Continuously adjustable voltage range 30kV—80kV
	Output voltage ripple：±0.5%（peak to peak）
	Output voltage accuracy：±2% of voltage setting value
	line regulation：±0.1%
	load regulation：±0.1%
Tube current	Rated tube current：Continuously adjustable current range 0.5mA-8.0mA
	Tube current accuracy：±0.2mA of current setting value
	line regulation：±0.1%
	load regulation：±0.1%
Rise time of output voltage	The kV rise time is <0.6 Sec at maximum power
Rise time of output voltage	The kV rise time is <0.1 Sec at low voltage ( < 40kV )
Filament power supply:	input voltage：24VDC
	filament voltage：2.0 to 5.3Vac
	filament：3.0 to 3.8 Amps RMS
	preheating time：3sec
Tube feature	Tube type：fixed anode、 beryllium window tube 、tungsten target
	focus：0.8mm
	inherent filtration：0.8mm Be
	radiation angle：45ºcone beam
	target angle：25°
Cooling	transformer oil，external circulation，external forced air cooling
Working temperatures	-10℃—40℃
Storing temperature	-20℃—60℃
System temperature protection	60℃±3℃ of oil temperature
Humidness	98%，Non-condensation
Weight	Oil tank：24.8kg
Weight	Control Unit：3.8kg
Installation direction	Installation in any direction
Radiation angle	cone angle of ray tapered beam 45°
X-ray leakage	Less than 0.5mR/hr at 5cm from the surface of the HVC80804.

JB1/AC~(AC Input Power Connector)

Pin	Signal	Parameter
1	L	live wire
2	N	Neutral line
3	G	PE

JB2/COM (DMR-9S interface definitions)

Pin	Signal	Parameter
1.4.6.7.8.9	N/C	No connect
2	TXD	Data transmit
3	RXD	Data receive
5	GND	Signal gnd

JB3/Interlock,(DMR-9P interface definitions)

Pin	Signal	Parameter
3/4/5/6/7/8/9	N/C	No connect
1	Interlock Out
2	Interlock In

Short connect pin1 and pin2 make X ray source normal operation. Typical connection：

Led indicator:

ID	Color	Meaning
XrayOn	Yellow	indicate X ray on
ARC	Red	Arcing in oil tank
OT	Red	Over temperature
EP_Err	Red	Tube voltage error
IP_Err	Red	Tube current error
Power	Green	Power on
